Double Layer Machine for Steel Roofing

double layer roll forming machine
5.5kw +4kw
1 year
Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Online Support, Overseas Service Center Available
380V 3P
around 10T
Delivery Time:
50 days
Place of Origin:
Control System:
PLC automatic

Product details description

10kw 380V Automatic Double Layer Forming Machine For Metal Roofing


1. Brief introduction of Double Layer Forming Machine


Double Layer Forming Machine offers a profitable solution for space and energy, combines Roofing, Wall Cladding, Corrugated profiles in one machine.Base on stable and durable performance, we knows well on various Roofing profile in different markets. Maximize cover width, Logo embossing, Anti-capillary grooves, we also offer customized product for client to supply their innovative idea to market.

this serious including Roofing, Wall Cladding, Corrugated profiles for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).


2. Specifications of Double Layer Forming Machine


1Coil Width914mm/1000mm/1200mm /1250mm or according to your request
2Diameter of shaft70mm
3Forming Speed8-12meters/min
4Middle plate16mm
5Material of shaft45#steel with tempering
6forming thickness0.2mm-0.6mm
7material of rollers45#steel
8Cutting typehydraulic -cutting
9Main power4kw/5.5kw /7.5kw/11kw according to machine
10Main frame350H steel
11Control systemPLC
12Brand of electrical partsDelta
13Manual decoiler5 tons
14Power3 Phase,380 Voltage,50Hz
15Dimensions(L*W*H)About 6.5*1.2*1.2M
16Weightabout 3 tons

3. Customer Feedback of Double Layer Forming Machine

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD150 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

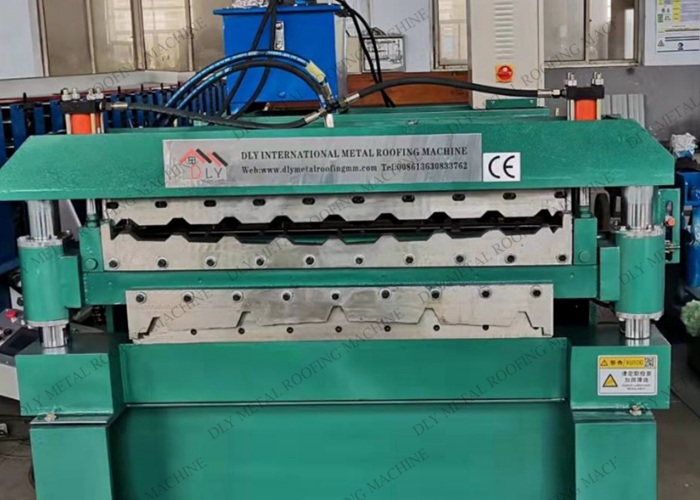

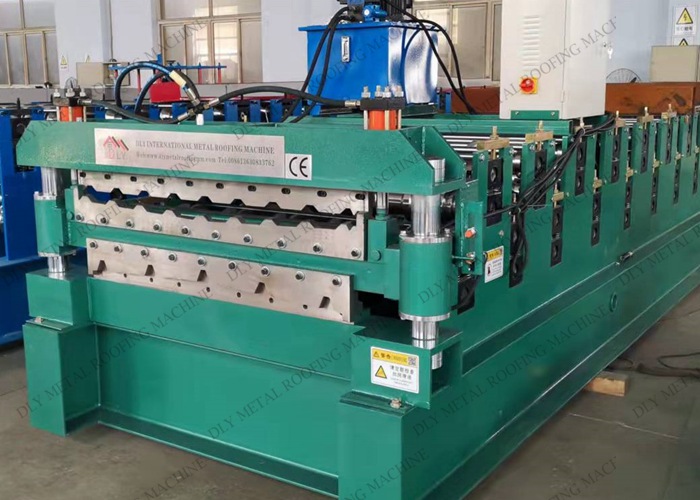

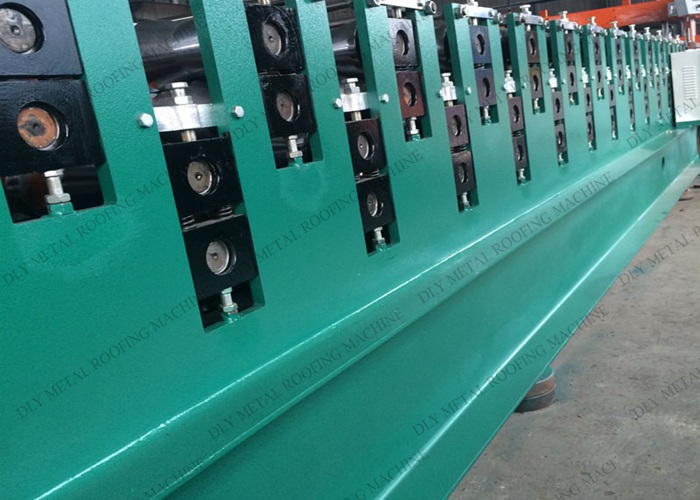

4. details photos of Double Layer Forming Machine
